TIEI Centrifugal Extractor Work Principle
Upper hanging structure
Remove the bearing and
mechanical seal at the bottom
No leakage risk
Advanced multi cavity separation structure
achieve Good separation effect
under low rotation speed
Advanced multi cavity
separation structure
achieve Good separation effect
under low rotation speed
Mixing Structure (optional)
According to the material liquid
system Up to 6 line Mixing structure
Set special quick replacement heavyphaseweir plate
Avoid problem of destroying the dynamic balance of equipment
Modular production
Cover shell module, spindle module, drum module, bearing block module.....
1) Mixed mass transfer process
The two-phase solutions enter into the mixing area of inside the shell from the two phase inlet ,which in a certain proportion to make the two phases mix
and disperse quickly and complete the mixing mass transfer process.
2)Two phase separation process
The mixed liquid enters the drum under the action of the vortex disc or feeder. Under the action of centrifugal force, the heavy phase liquid gradually moves away
from the center of the drum and towards the drum wall in the upward flow process; The light phase liquid with low density gradually moves away from the drum
wall and towards the center. The clarified two-phase liquid finally enters the collection chamber through their respective weir plates and flows out from the light
phase outlet to complete the two-phase separation process.

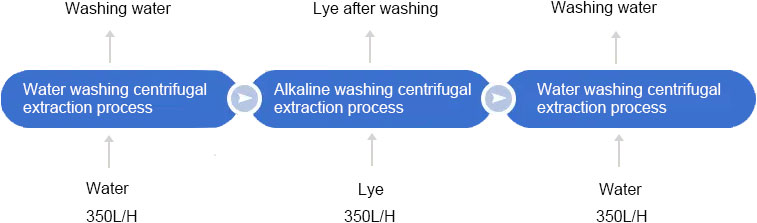

Schematic diagram of the extraction process

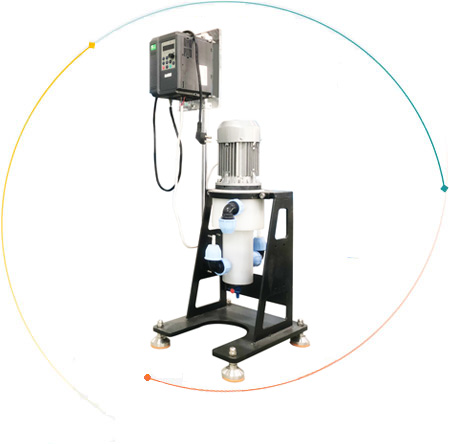

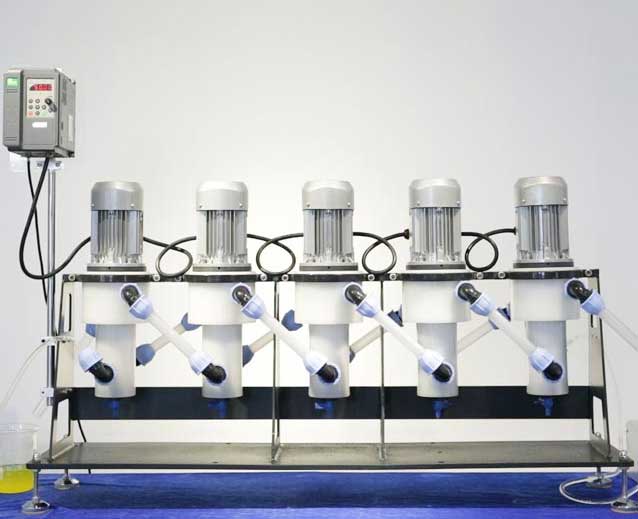

Technical Specification
| Model | Diameter of Bowl (mm) | Applicable rotating speed | Max. Mixing Flux(L/H) | Pipe diameter of inlet and outlet(mm) | Two-phase flow ratio range | Motor Power(KW) | Unit Dimension |
| CWL25-M | 25 | 5000-7000 | ≤10 | DN10 | 1/30～30/1 | 0.09 | 230×230×800 |
| CWL50-M | 50 | 5000-7000 | ≤50 | DN20 | 1/30～30/1 | 0.18 | 400×370×900 |
