Wet process phosphoric acid extraction and purification equipment

The phosphoric acid produced by decomposing phosphate rock with sulfuric acid, nitric acid, or hydrochloric acid is collectively referred to as wet process phosphoric acid, and the method of decomposing phosphate rock with sulfuric acid to produce phosphoric acid is the most basic method in the production of wet process phosphoric acid.

The reaction formula for rock decomposition is represented as follows:
Ca5F(PO4)3+10HNO3 == 3H3PO4 + 5Ca(NO3)2 + HF （1-1）
Ca5F (PO4)3 + 10HCl == 3H3PO4 + 5CaCl2 + HF （1-2）
Ca5F(PO4)3+5H2SO4+ nH2O == 3H3PO4 + 5Ca SO4·nH2O +HF （1-3）

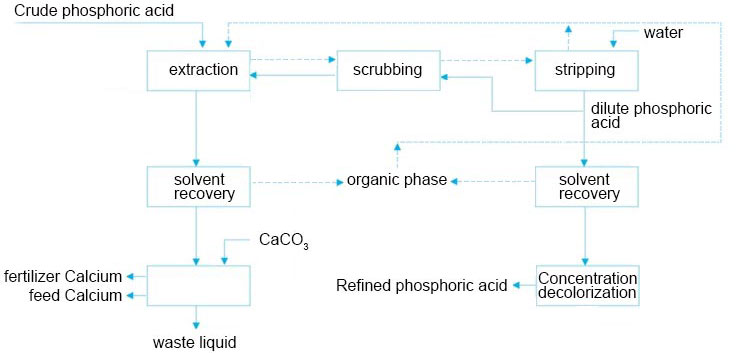

When the reaction stop, how to separate the calcium salt ? this is the key point to produce the phosphoric acid economically.

The CWL-M series centrifugal extractor produced by Tiei is developed according to the drawback of conventional extractor. It is our new product which has our own patent. The patent No. is ZL2014205865573. The power consumption is only 10%-30% of traditional annular centrifugal extractor based on same condition. Meanwhile, it has advantages of short retention time, high extraction efficiency, fast to equilibrium, investment cost saving, solvent saving.

Solution 1：Liquid–Liquid Extraction Skid Platform

Liquid–Liquid extraction Centrifugal Extractor solutions are also available! You just need to tell our engineer your demand, and we will equip you the right Liquid–Liquid extraction Centrifugals with low energy consumption, low cost, and high efficiency.

TIEI Liquid–Liquid extraction Skid platform has exclusive benefits you cannot resist:

1. The Liquid–Liquid extraction equipment is small in size, the equilibration time is short, and the stock of the extractant tank is small.
2. The Liquid–Liquid extraction device has a large processing capacity and low power consumption.
3. High degree of automation and simple operation.
4. Liquid–Liquid extraction Skid platform can realize the closed operation of the extraction system, and the operating environment is good.
5. The Liquid–Liquid extraction Skid platform is compact in structure and occupies a small area.
6. Vertical direct motor drive, compact structure
7. Can be adapted to intermittent or continuous operation.
8. The internal volume of the Liquid–Liquid extraction Skid platform is small, saving extraction agent, solvent or detergent
9. The rotation speed and mixing method are easy to adjust, and can adapt to the requirements of different extraction systems.

Solution 2：Multistage Liquid–Liquid Countercurrent Continuous Extraction

Multistage Liquid–Liquid Process Description:
1. The Multistage Liquid–Liquid Extraction process is not limited to four-stage pickling, alkali washing and water washing, and the number of countercurrent washing stages can be increased according to the actual situation;
2. The Multistage Liquid–Liquid Extraction process is suitable for separating organic mixtures immiscible with water such as acetochlor, alachlor, etc.;
3. The Multistage Liquid–Liquid Extraction process relies on centrifugal separation (hundreds to thousands of times the gravity under the same conditions), and the separation efficiency is high;
4. The Multistage Liquid–Liquid Extraction process equipment occupies a small area, low power consumption, and less residual liquid, which can realize the continuous production of the acetochlor washing process section;

More TIEI Liquid–Liquid Centrifugal Extractor you may interest

Liquid–Liquid Centrifugal Extractor

TIEI Liquid–Liquid centrifugal extractor is a new type of liquid-liquid extraction equipment developed by our company after many years of research, the Liquid–Liquid extraction equipment could realize mixed and mass transfer, reaction, extraction, washing and separation and many other functions. It has widely application in Pharmaceutica, Chemical, Food, Hydrometallurgy, Environmental and so on.

Mixing Flux：1000-150000 L/H
Model: CWL150-M; CWL250-M; CWL350-M;CWL450-M
Customized：YES

Read More > Get Price
