Liquid–Liquid extraction Mixing
And Separation Solution Provider
And Separation Solution Provider
Constantly meet customer needs and create value for customers
More Detail Inquiry NowPyrometallurgy:
√ no need to disassemble battery
√ simple process
√ Strong applicability of battery type
× high power consumption
× alloy steel need to be separated in later process
× plastic , lithium, cobalt etc. can not be recycled
× High pollution of tail gas
Disassemble + hydrometallurgy：
√ high product purity
√ high recycling rate
√ plastic , Li, Co etc. all can be recycled
√ mature technology
× New technology

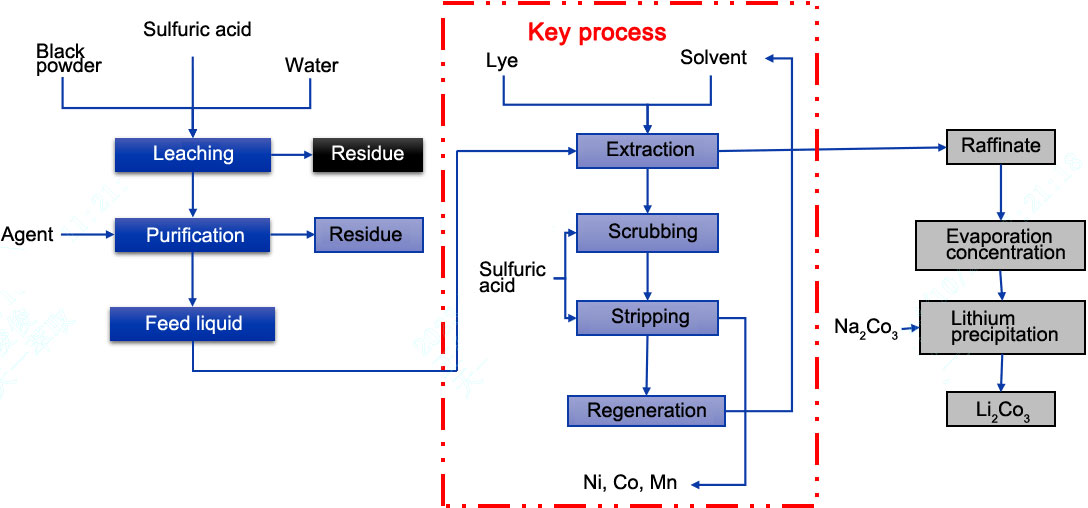

The main battery recovery for lithium cobalt nickel extraction process includes: solvent extraction --- washing --- stripping(back extraction). The centrifugal extraction process designed for you by Tiei Extraction is easy to operate, capable of continuous production, fast processing speed, and can achieve automated production, reducing the comprehensive investment cost of separation for lithium cobalt nickel manganese etc. metal.
Advantages of our new technology: Cyclic leaching, directional extraction, wide applicability, and low production cost
Shorten production cycles to improve production efficiency;
Reduced metal retention,
Improve capital turnover efficiency
Reduced consumption of auxiliary materials
Reduced amount of organic phase consumption
Lower production cost
Reduced the amount of wastewater
Reduced consumption of organic phase
reduced environment protection cost
| Item | Production equipment | Operation | |||
| Floor area(m2) | Liquid hold up(m3) | Single power(kW) | Wastewater generation | Production costs | |
| TIEI Extraction process technology | 250 | 35 | 4.0 | reduced 10%+ | reduced 10%+ |
| Tranditional process technology | 2000 | 3000 | 5.5 | reduced 10%+ | reduced 10%+ |

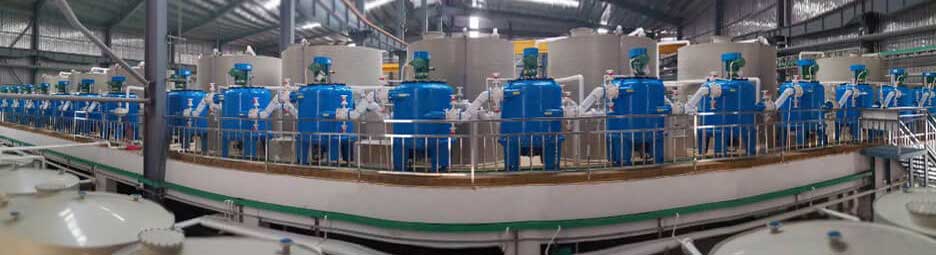

Solution 1：Liquid–Liquid Extraction Skid Platform
Liquid–Liquid extraction Centrifugal Extractor solutions are also available! You just need to tell our engineer your demand, and we will equip you the right Liquid–Liquid extraction Centrifugals with low energy consumption, low cost, and high efficiency.
TIEI Liquid–Liquid extraction Skid platform has exclusive benefits you cannot resist:
1. The Liquid–Liquid extraction equipment is small in size, the equilibration time is short, and the stock of the extractant tank is small.
2. The Liquid–Liquid extraction device has a large processing capacity and low power consumption.
3. High degree of automation and simple operation.
4. Liquid–Liquid extraction Skid platform can realize the closed operation of the extraction system, and the operating environment is good.
5. The Liquid–Liquid extraction Skid platform is compact in structure and occupies a small area.
6. Vertical direct motor drive, compact structure
7. Can be adapted to intermittent or continuous operation.
8. The internal volume of the Liquid–Liquid extraction Skid platform is small, saving extraction agent, solvent or detergent
9. The rotation speed and mixing method are easy to adjust, and can adapt to the requirements of different extraction systems.
Solution 2：Multistage Liquid–Liquid Countercurrent Continuous Extraction
Multistage Liquid–Liquid Process Description:
1. The Multistage Liquid–Liquid Extraction process is not limited to four-stage pickling, alkali washing and water washing, and the number of countercurrent washing stages can be increased according to the actual situation;
2. The Multistage Liquid–Liquid Extraction process is suitable for separating organic mixtures immiscible with water such as acetochlor, alachlor, etc.;
3. The Multistage Liquid–Liquid Extraction process relies on centrifugal separation (hundreds to thousands of times the gravity under the same conditions), and the separation efficiency is high;
4. The Multistage Liquid–Liquid Extraction process equipment occupies a small area, low power consumption, and less residual liquid, which can realize the continuous production of the acetochlor washing
process section;
If you want to learn more about TIEI Liquid–Liquid Centrifugal Extractors, Leave Message Online
TIEI Liquid–Liquid centrifugal extractor is a new type of liquid-liquid extraction equipment developed by our company after many years of research, the Liquid–Liquid extraction equipment could realize mixed and mass transfer, reaction, extraction, washing and separation and many other functions. It has widely application in Pharmaceutica, Chemical, Food, Hydrometallurgy, Environmental and so on.
Mixing Flux：1000-150000 L/H
Model: CWL150-M; CWL250-M; CWL350-M;CWL450-M
Customized：YES
Focus on being Liquid–Liquid extraction Mixing And Separation Solution Provider.
We will reply you quicklyIf you want to learn more about our centrifugal extractor, mixer settler, Contact us Now
